Tyba Bus Connector KNX

$236.00

The KNX Bus Connector is a product for interfacing Tyba products to the KNX TP proprietary bus.

It is also designed to provide a mounting interface for Tyba products as well as power.

Available on backorder

Model Number: TY-B-KNX

The KNX Bus Connector is not intended to be used for any function outside those described.

The KNX Bus Connector should be used with the following software, original accessories and components only:

• KNX ETS Software

• Tyba genuine products

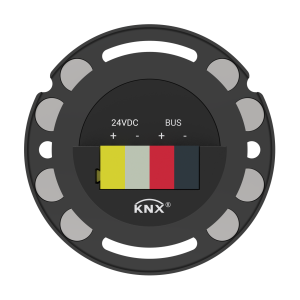

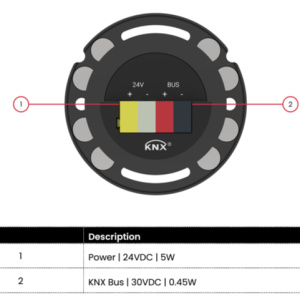

KNX Bus 30VDC| 0.45W

Power :24VDC | 5W

Dimensions :W 73.6mm | H 73.6mm | D 26.7mm

Weight: 50g
